50A DC DC Charger with Buck Boost Alternator Charging IP32 Protection Lightweight Design
Product Description:
The DC DC Charger is designed to operate in extreme temperatures, with an operating temperature range of -35°C to 65°C (-31℉ to 149℉). This makes it an ideal solution for those who live or work in harsh environments where traditional chargers may fail.
The DC DC Charger also comes with a high level of protection, with an IP32 protection degree. This ensures that the charger is able to withstand dust and water splashes, making it a durable and long-lasting device.
With its communication capabilities, the DC DC Charger can be easily controlled and monitored. The charger has TTL, remote switch, and Bluetooth (with APP) communication options, allowing you to choose the method that best suits your needs.
The DC DC Charger is also compatible with starter batteries rated at 12/24Vdc, making it a versatile device that can be used in different vehicles and applications. Whether you need a dc dc charger lithium for your electric vehicle or a dc to dc car charger for your portable devices, the DC DC Charger is the perfect solution.
Features:
- Product Name: DC DC Charger
- Protection Degree: IP32
- Max. Alternator Charging Current: 60A
- Rated Battery Voltage: 12Vdc
- COMMUNICATION: TTL, Remote Switch, Bluetooth (with APP)
- MPPT Voltage Range: 17～36Vdc
- DC to DC Charger with Solar Input
- DC DC Charger 50A
- DC to DC Charger with Solar Input
Technical Parameters:
| MODEL | MD1230N05 |
| Max. PV Voltage of Open Circuit | 55V |
| MPPT Voltage Range | 17～36Vdc |
| Max.PV Input Current | 27A |
| Max.PV Input Power | 400W |
| LEISURE BATTERY Type | Lead-acid / Li-ion / User Defined |
| Rated Leisure Battery Voltage | 12Vdc |
| Leisure Battery Voltage Range | 9~16Vdc |
| Max.MPPT Charging Current | 30A |
| Max.Alternator Charging Current | 35A |
| STARTER BATTERY TYPE | Lead Acid |
| Rated Starter Battery Voltage | 12/24Vdc |
| Max.Alternator Input Voltage-Conventional Alternator | 13.2~16Vdc / 26.4~32Vdc |
| Max.Alternator Input Voltage-Euro 6 Standard Alternator | 12~16Vdc / 24~32Vdc |
| Alternator Charging Mode | Buck,Boost,Buck-Boost |
| MPPT Tracking Efficiency | >99% |
| Max. Charging Conversion Efficiency | 98% |
| COMMUNICATION | TTL,Remote Switch,Bluetooth (with APP) |
| Weight | 1.92kg(4.23 lb) |
| Dimension | 221*175.8*92.4mm(8.7*6.9*3.63in) |
| Protection Degree | IP32 |
| Operating Temperature Range | -35°C~65°C(-31℉～149℉) |
| Warranty | 3 Years |
Applications:

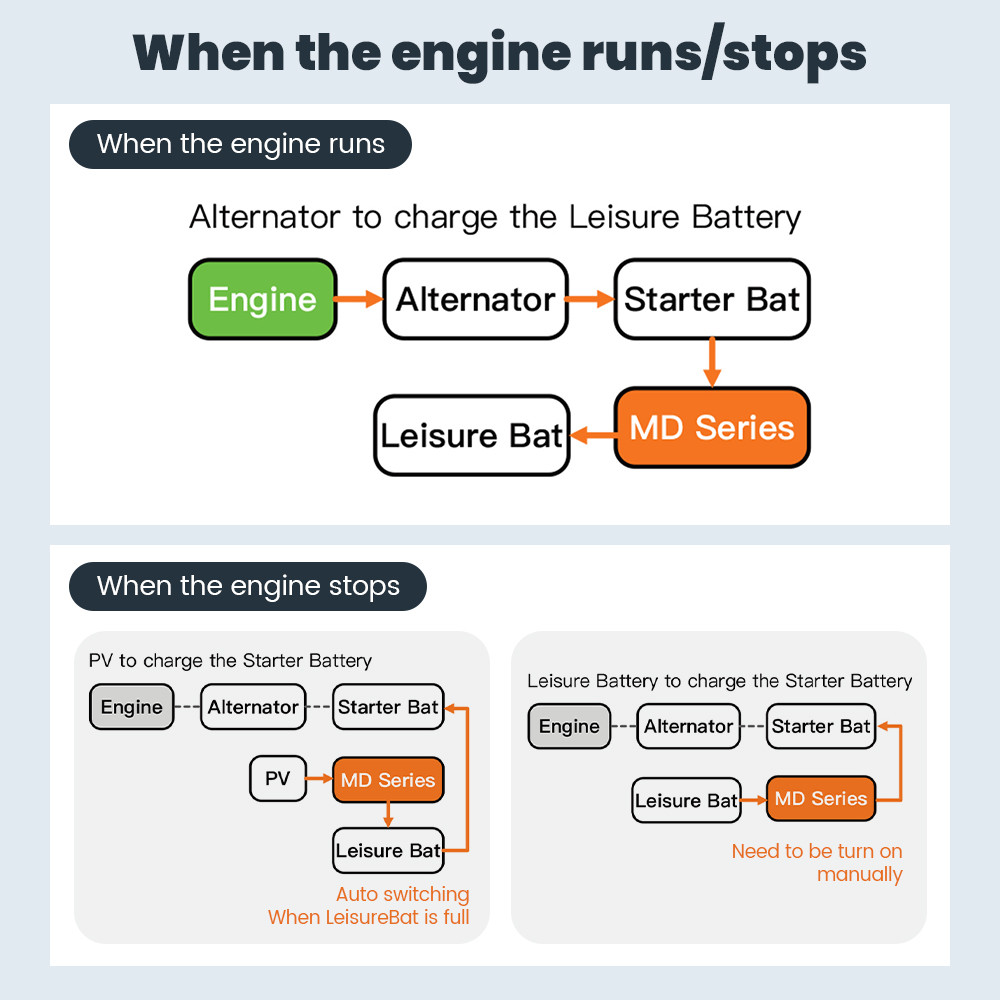

Melin Sunergy MD1250N05 is a DC to DC charger with solar input, designed to charge 12Vdc battery systems in vehicles, boats, and other off-grid applications. It can be used in a variety of occasions and scenarios, some of which are listed below:
- Caravanning and Camping: The MD1250N05 is an ideal solution for charging batteries in caravans and camping trailers. With its ability to accept solar input, it can recharge batteries during the day, allowing for extended periods of off-grid camping.
- Off-Road Vehicles: The DC to DC charger can be used to charge auxiliary batteries in off-road vehicles such as 4x4s, ATVs, and dirt bikes. This ensures that the vehicle's main battery is not drained, and there is always power available for accessories such as fridges, lights, and winches.
- Marine Applications: The MD1250N05 is also suitable for charging batteries in boats and yachts. Its ability to accept solar input makes it an ideal solution for long-term anchoring situations where the battery needs to be charged without using the engine.
- Emergency Response Vehicles: In emergency response scenarios, such as firefighting or ambulance services, the DC to DC charger can provide a reliable source of power. It can charge batteries in vehicles such as ambulances, fire trucks, and command centers, ensuring that critical equipment remains operational.
- Remote Installations: The MD1250N05 can be used in remote installations such as weather stations, telecommunications equipment, and monitoring systems. Its ability to accept solar input ensures that the battery is charged even in remote locations without access to mains power.
The MD1250N05 has a maximum output of 50A and can accept a battery voltage range of 9~16Vdc. Its MPPT voltage range is 17～36Vdc, and it has a maximum voltage of open circuit of 55v. The charger can accept a maximum alternator input voltage of 13.2~16Vdc / 26.4~32Vdc or 12~16Vdc / 24~32Vdc. It is CE, FCC, and UKCA certified, ensuring that it meets the highest safety standards. The charger has a minimum order quantity of 10 and a delivery time of 15 days. Payment terms include TT and West Union, and the supply ability is 5000pcs per month.
